Neo Burner

AUTOMATIC ETHANOL BURNER

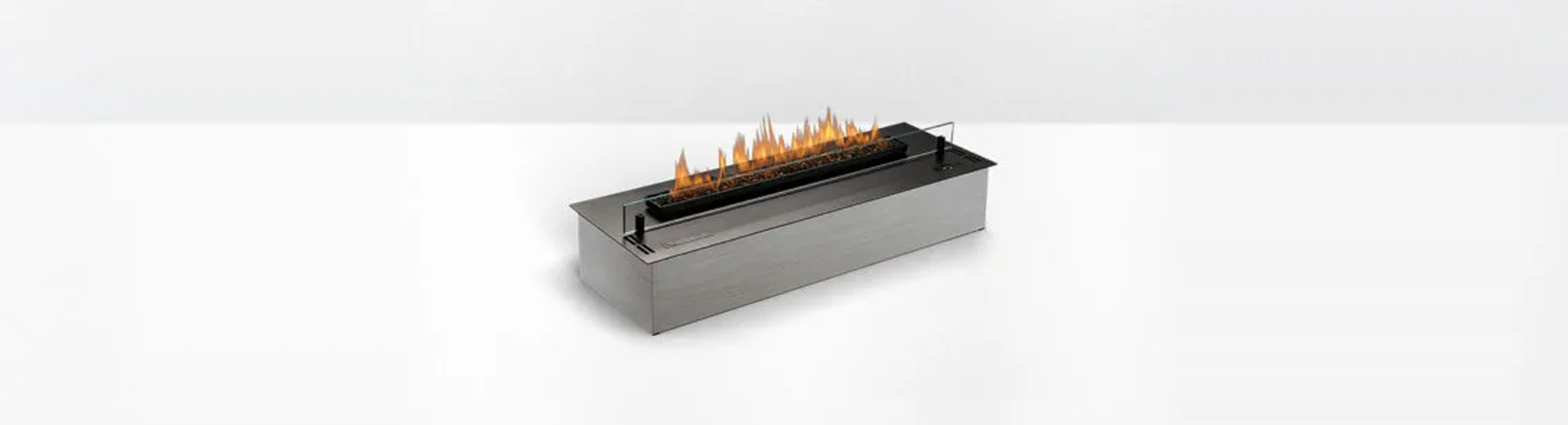

Neo Burner is an ethanol-fuelled product in Planika’s premium collection – an alternative for traditional wood-burning fireplaces. The dedicated casing allows to install the unit almost immediately. The safe usage of the burner is provided by different sensors and a microprocessor that monitors the combustion process all the time.

  • FOR INDOOR USE ONLY
  • DEDICATED PUMP
  • INCLUDED REMOTE CONTROL
  • OPTIONAL GRATE AND LOGS
  • BEV Technology

NEO BURNER MODELS

NEO BURNER 500

  • Burning time up to 5 h
  • Tank capacity 1.7 L
  • Heat output 3.1 kW
  • Required room size 31 m3
  • Length: 500 mm
  • Weight 10.1 kg

NEO BURNER 750

  • Burning time up to 6 h
  • Tank capacity 2.1 L
  • Heat output 4.1 kW
  • Required room size 41 m3
  • Length: 750 mm
  • Weight 14.3 kg

NEO BURNER 1000

  • Burning time up to 4 h
  • Tank capacity 2.9 L
  • Heat output 5.9 kW
  • Required room size 59 m3
  • Length: 1000 mm
  • Weight 18.5 kg

TECHNICAL SPECIFICATION

  • Flame height regulation
    - 2 stages
  • Fuel type
    - bioethanol 95 – 96,6%
  • Flue
    - not required
  • Air change rate
    - 1 space volume per hour
  • Power supply
    - 230V
  • Flue
    - not required
  • Power supply
    - 230V
  • Finish
    - black powder coating
  • Materials
    - steel, galvanized steel, toughened glass
  • Application
    - for indoor use only
